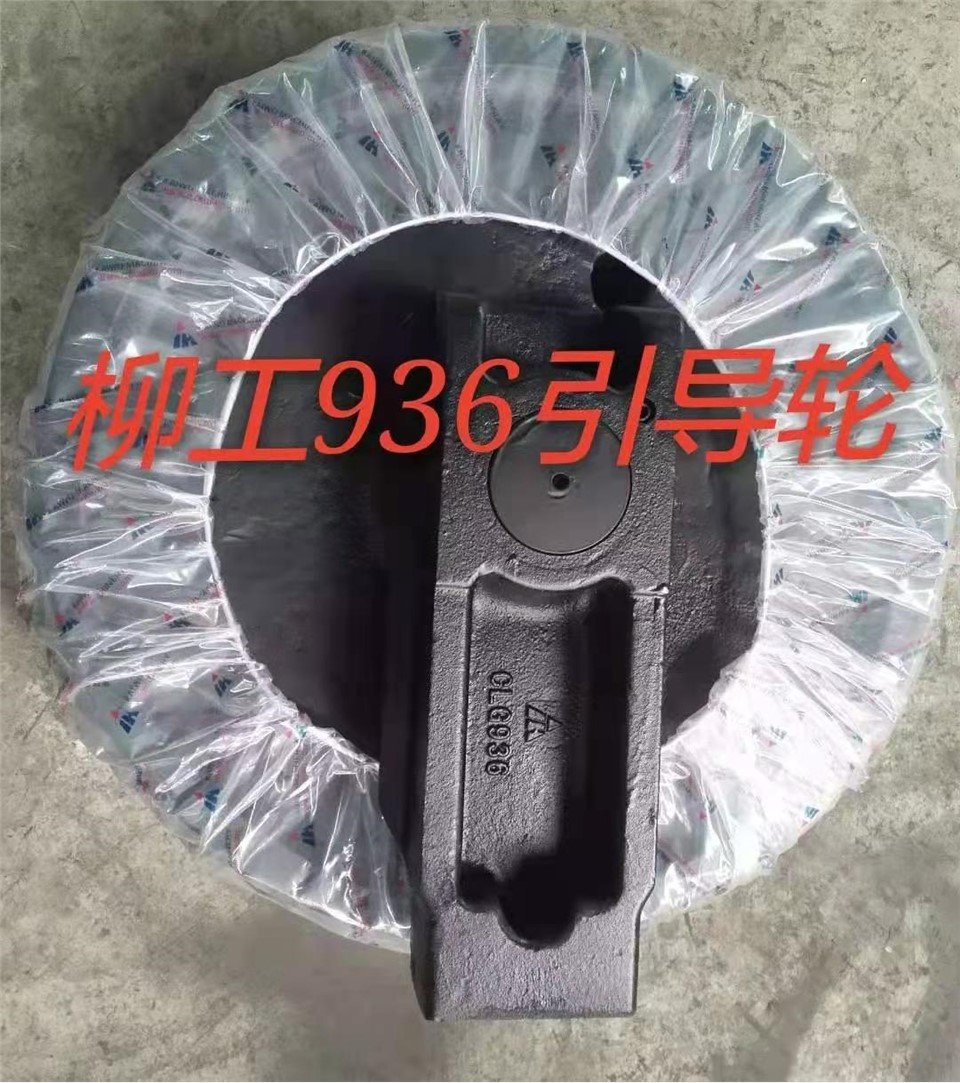

LIUGONG CLG936 IDLER

LIUGONG IDLER CLG936

Brand: LIUGONG     Type: Excavators     Model: CLG936

Weight: 266 Kg

IDLER/IDLER WHEEL

CHARACTERISTIC:
The guide wheel is casted by material 35Mn2. After medium frequency heat treatment of rail surface, the deep layer reaches 0.8 ~ 1.2 cm. The side plates on both sides are thickened and stiffened. The bracket is made of precision steel casting, and the material is 45#. It can better reflect its stability and service life of products when used in mines

What is guide wheel of excavator?

The guide wheel of excavator is used to guide the track link to rotate correctly to prevent its deviation and derailment. Most idlers also play the role of track roller. This can increase the contact area of the track link to the ground and reduce the ground pressure. The wheel surface of the guide wheel is made into a smooth surface, the middle of which is used as a guide ring, and the ring surfaces on both sides support the rail chain.

Key points of excavator guide wheel:

In order to make the excavator idler work and prolong its service life, the radial runout of the wheel face should be less than or equal to 3 mm, and it should be correctly aligned during installation.

The box structure of excavator's guide wheel body is cast by resin sand process, and the appearance quality of the wheel body has reasonable mechanical structure performance at the same time; After normalizing, the matrix has good impact resistance; The surface hardness reaches hrc48-54, and the depth of 6 mm is not lower than HRC46. It has wear resistance under bad working conditions.
